The Mofidi 830 L/min Piston Air Compressor is one of the products manufactured by Mofidi Air Industry for supplying compressed air to workshops, industrial facilities, and production lines.
This compressor is available in three configurations:
horizontal, vertical, and skid-mounted,
with different tank options to meet various installation and operating requirements.
Models and Tank Capacities of the 830 L/min Compressor
Horizontal Model
The horizontal piston compressor is available with
350-liter and 500-liter tanks.
Vertical Model
The vertical piston compressor is designed with a
500-liter tank.
Skid-Mounted Model
The skid-mounted version is also available with a
500-liter tank
and is suitable for selected industrial applications.
The variety of available configurations allows users to select the most suitable option based on
available workspace, compressed-air demand, and operating conditions.
Advantages of Different Configurations
Horizontal Piston Compressor
The lower height of the horizontal model makes it suitable for environments with limited ceiling
clearance. Its low-profile design also contributes to convenient installation and stable operation.

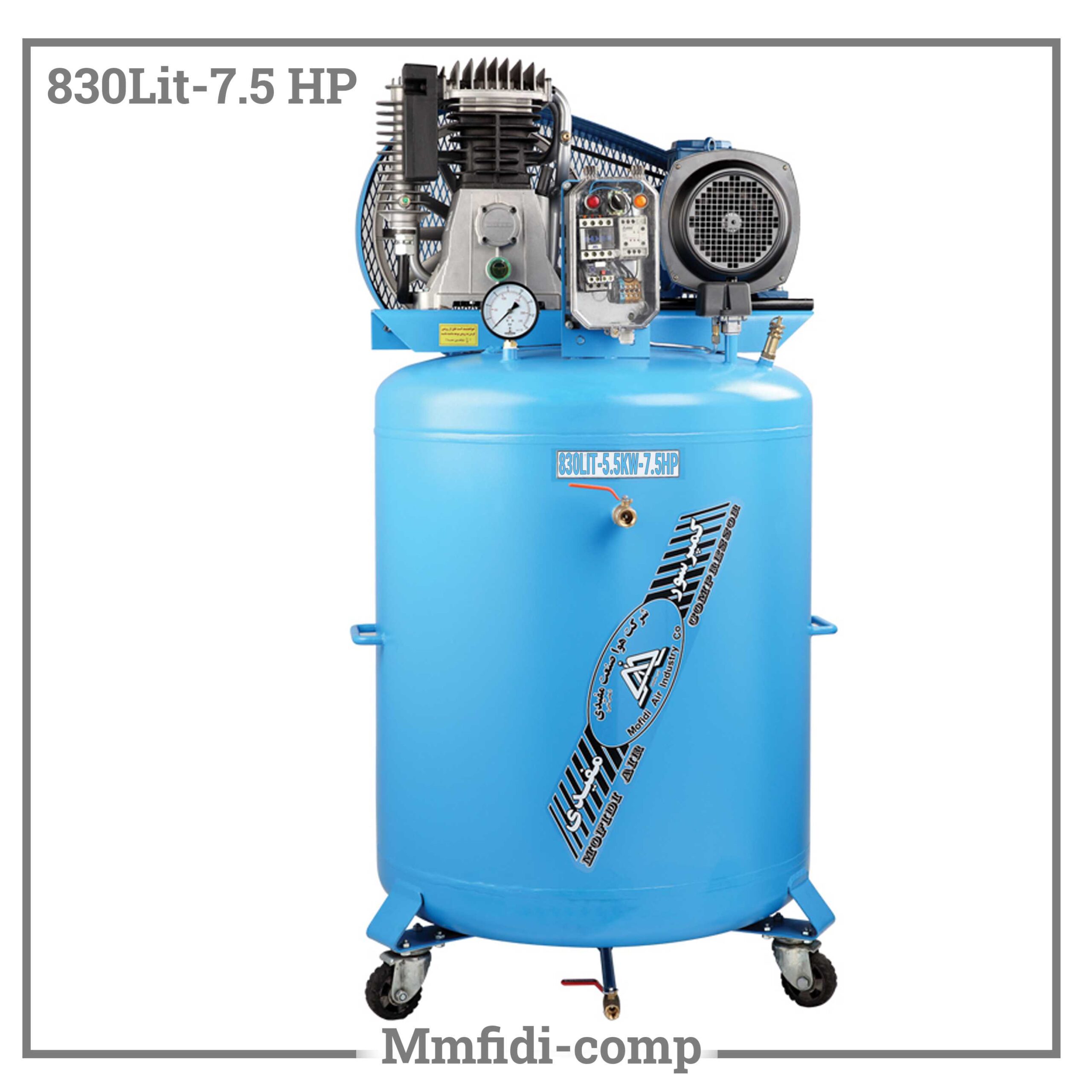

Vertical Piston Compressor
The vertical design makes more efficient use of floor space and is a suitable option for workshops
with limited installation area. Moisture can also be easily drained from the tank through the
ball valve, helping reduce the risk of internal corrosion.

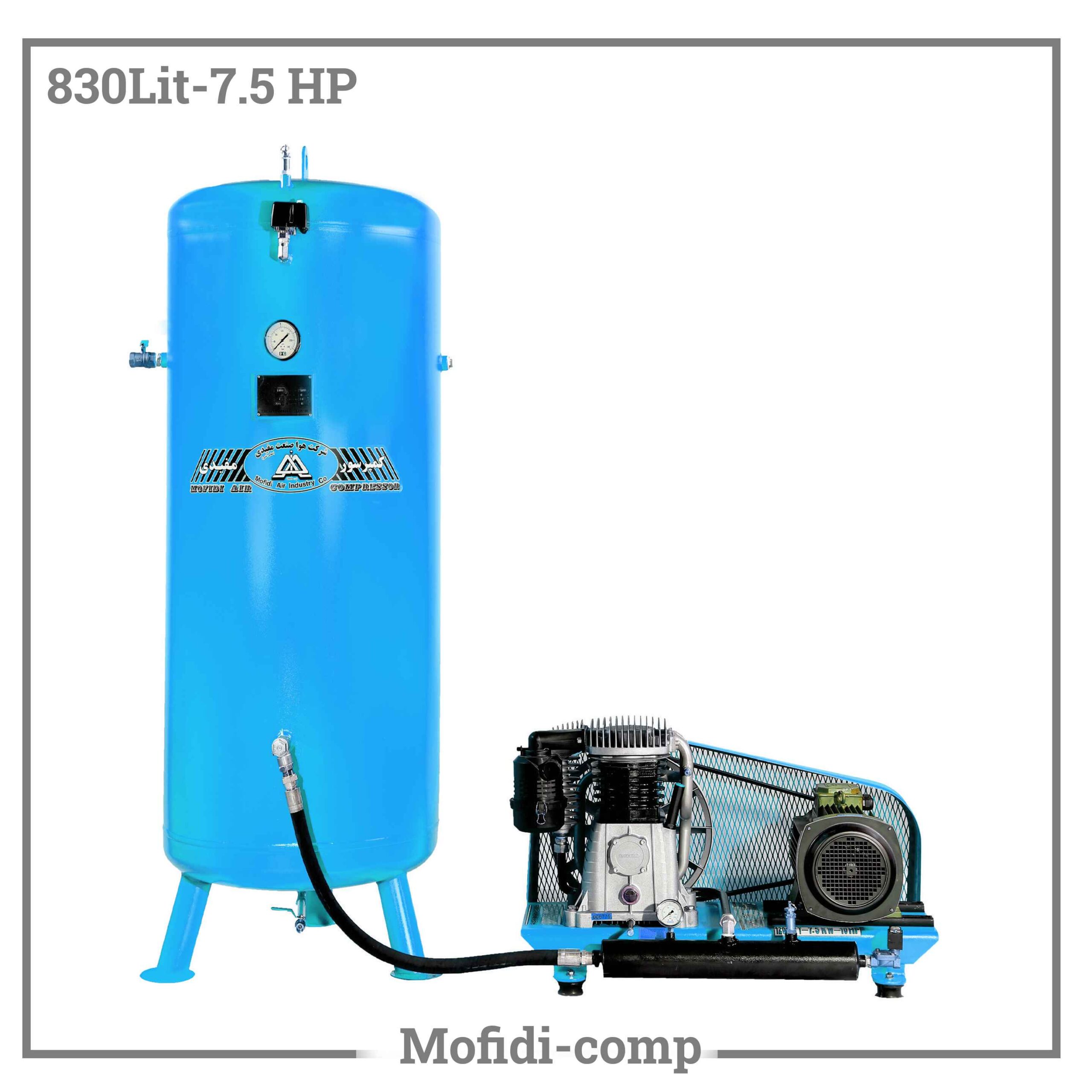

Skid-Mounted Compressor
The skid-mounted configuration provides a practical solution for industrial applications where
a different installation arrangement is required. Its design is suitable for production lines
and other demanding compressed-air applications.
Technical Specifications of the Mofidi 830 L/min Piston Air Compressor
With a maximum working pressure of 10 bar (145 PSI),
the Mofidi 830 L/min Piston Air Compressor can provide compressed air for a variety of industrial tools and processes.
The motor power is 5.5 kW (7.5 HP), while the air intake capacity is
830 L/min (29.1 CFM).
The piston speed is 1,100 RPM, providing reliable operating performance
for a range of industrial and workshop applications.
Key Advantages of the Mofidi 830 L/min Piston Compressor
High Air Intake Capacity
An air intake capacity of 830 L/min provides a suitable compressed-air supply
for a wide range of industrial tools and equipment.
Flexible Installation
Horizontal, vertical, and skid-mounted configurations allow users to select
the most suitable installation arrangement for their available space.
Suitable for Industrial Applications
The compressor is suitable for workshops, production lines, and applications
requiring a reliable supply of compressed air.
Applications of the Mofidi 830 L/min Piston Compressor
Mechanical and Industrial Workshops
Suitable for mechanical and industrial workshops that require a stable and reliable
source of compressed air.
Production Lines
Suitable for production lines where multiple pneumatic tools and equipment
require compressed air simultaneously.
Industrial and Construction Projects
The skid-mounted configuration can be a practical choice for applications where
flexible installation or equipment relocation is required.
Choosing the Right Compressor Configuration
When selecting the Mofidi 830 L/min Piston Air Compressor,
consider the required air consumption, operating pressure, available installation space,
configuration type, and operating duration to select the most suitable model and tank capacity.
Mofidi 830 L/min Piston Air Compressor
830 Liters – 7.5 HP

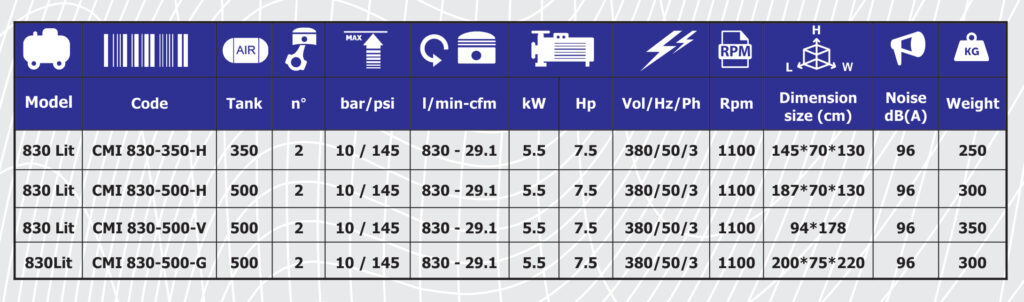

Mofidi 830 L/min Piston Air Compressor – Technical Specifications
| Specification | Value |
|---|---|
| Model | 830 CMI |
| Compressor type | Piston (reciprocating) |
| Air delivery (intake) | 830 L/min (29.1 cfm) |
| Working pressure | 10 bar (145 psi) |
| Motor power | 5.5 kW (7.5 HP) |
| Piston speed | 1100 RPM |
| Power supply | three-phase 380 V |
| Tank size | 350 or 500 liters |
The “830 L/min” in the name of this compressor is its air delivery (830 liters of air per minute), not the tank size. It is supplied with a 350 or 500-liter tank.
What Is the 830 L/min piston air compressor Suitable For?
With a 7.5 HP motor and three-phase 380 V power supply, the Mofidi 830 L/min piston air compressor is a good choice for medium workshops, woodworking and MDF shops, auto repair centers and light production lines running several air tools at once. If you need less air, see the 650 L/min piston air compressor. For higher demand, see the 1,000 L/min piston air compressor.
Compare Mofidi Piston Air Compressors
| Model | Air delivery | Motor | Pressure | Power supply |
|---|---|---|---|---|
| 100 L/min | 100 L/min | 1 HP | 8 bar | Single-phase |
| 200 L/min | 200 L/min | 1.5 HP | 8 bar | Single-phase |
| 300 L/min | 300 L/min | 2 HP | 8 bar | Single-phase |
| 350 L/min | 350 L/min | 3 HP | 8 bar | Single-phase |
| 450 L/min | 450 L/min | 4 HP | 10 bar | Three-phase |
| 650 L/min | 650 L/min | 5.5 HP | 10 bar | Three-phase |
| 830 L/min | 830 L/min | 7.5 HP | 10 bar | Three-phase |
| 1,000 L/min | 1,000 L/min | 10 HP | 10 bar | Three-phase |
| 1,200 L/min | 1,200 L/min | 10 HP | 10 bar | Three-phase |
| 1,500 L/min | 1,500 L/min | 15 HP | 8 bar | Three-phase |
| 2,000 L/min | 2,000 L/min | 20 HP | 8 bar | Three-phase |
| 3,000 L/min | 3,000 L/min | 25 HP | 8 bar | Three-phase |
For more guidance, read Mofidi Piston Compressor: A Powerful and Cost-Effective Choice and our Guide to Choosing the Right Industrial Compressor.
Mofidi 830 L/min Piston Air Compressor – FAQ
What does “830 L/min” mean?
It means the compressor takes in 830 liters of air per minute (29.1 cfm). The tank size is 350 or 500 liters.
What is the working pressure?
10 bar (145 psi).
Does it run on single-phase or three-phase power?
It requires a three-phase 380 V industrial power supply.
What is the motor power?
5.5 kW (7.5 HP).
Buy the Mofidi 830 L/min Piston Air Compressor
Contact Mofidi Air Industry for help choosing the right model and tank size, and for a quote. See all models in Piston Air Compressors.
