The Mofidi 3,000 L/min Piston Air Compressor is a practical solution for a wide range of industries requiring a high-capacity compressed-air supply with stable operating pressure.
This compressor is available in two configurations:
horizontal and skid-mounted,
with different tank capacities to meet various industrial requirements.
Mofidi 3,000 L/min Piston Air Compressor

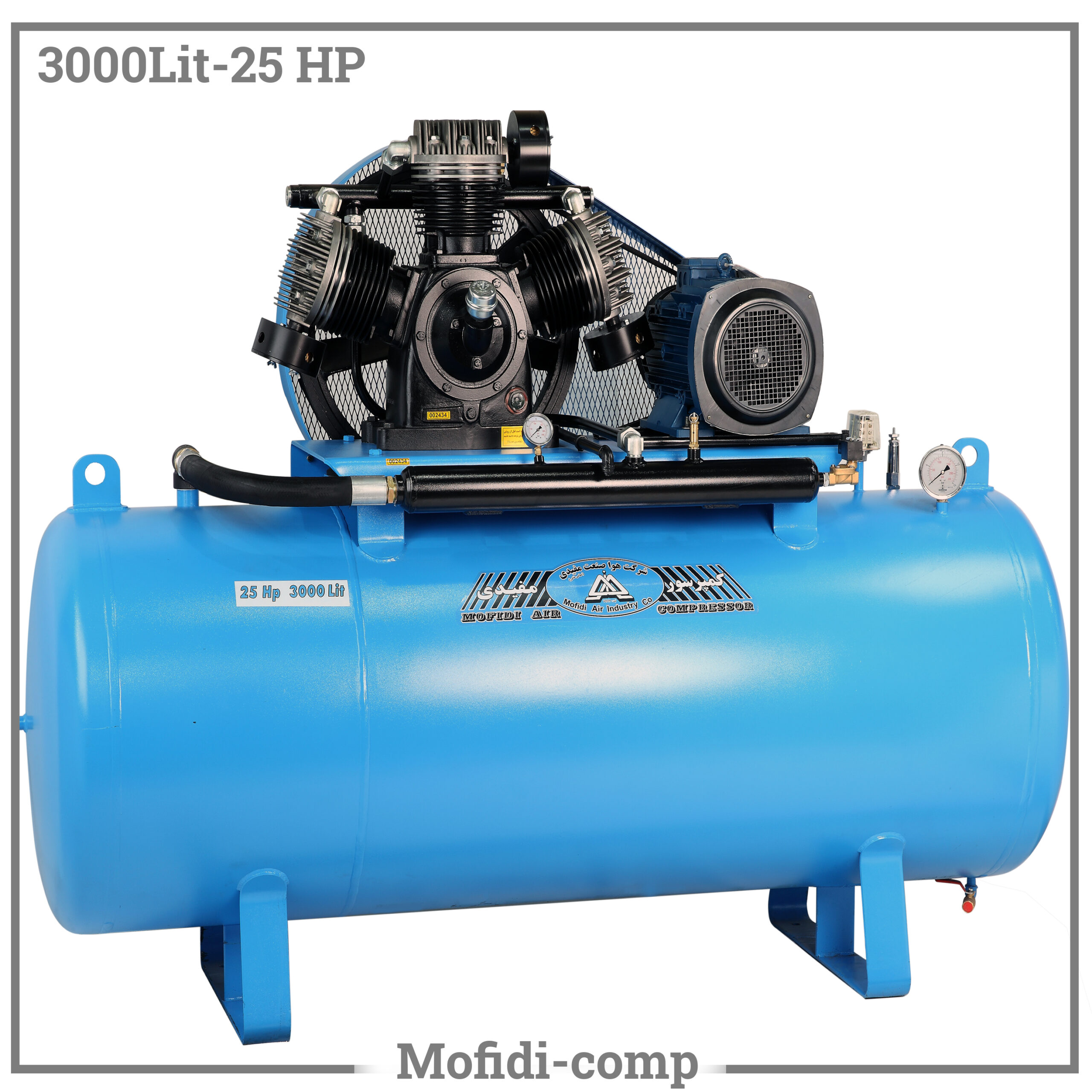

Horizontal Model
The horizontal model is available with
1,000-liter and 1,250-liter tanks,
allowing users to select the appropriate tank capacity according to their compressed-air requirements and operating cycles.

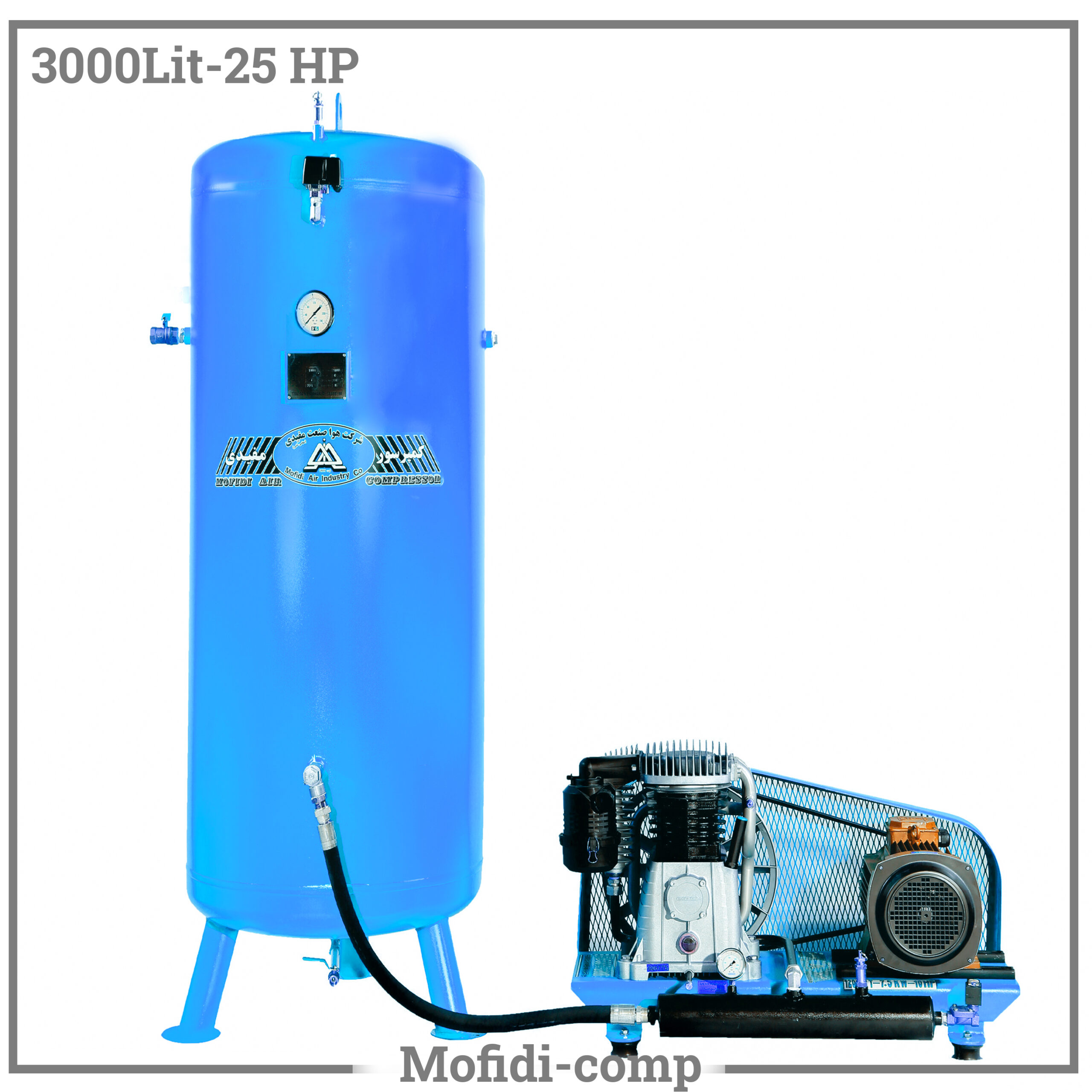

Skid-Mounted Model
The skid-mounted model is available with a
1,250-liter tank.
Its configuration also allows flexible installation of the compressor unit and air receiver when required.
Larger air receivers can help reduce frequent compressor pump cycling and, in some applications, contribute to more stable air pressure.
The skid-mounted configuration can be a practical option for limited spaces and allows the compressor unit and air receiver to be installed separately when the system layout requires it.
The overall dimensions of the compressor vary depending on the selected tank size and installation configuration, which can affect installation space, service access, and maintenance convenience.
Technical Specifications
The maximum working pressure of this piston compressor is
8 bar (116 PSI), making it suitable for many industrial applications and pneumatic tools requiring compressed air.
The compressor is equipped with an 18.5 kW (25 HP) motor
and provides an air intake capacity of 3,000 L/min (105.2 CFM).
The piston speed is 1,100 RPM, providing suitable operating performance
for medium- to heavy-duty compressed-air applications.
Key Advantages of the Mofidi 3,000 L/min Piston Compressor
Flexible Configuration
Users can choose between horizontal and skid-mounted configurations according to workspace and installation requirements.
Large Tank Options
The horizontal model is available with 1,000-liter and 1,250-liter tanks, while the skid-mounted model is available with a 1,250-liter tank.
High Air Delivery
The 3,000 L/min air intake capacity is suitable for industrial environments with relatively high and continuous compressed-air demand.
25 HP Motor
The 18.5 kW (25 HP) motor provides the required power for demanding compressed-air applications.
Applications of the Mofidi 3,000 L/min Piston Compressor
Large Workshops and Factories
Suitable for large workshops and factories requiring compressed air for industrial tools such as
turning machines, milling machines, air cutting equipment, punches, and other high-consumption applications.
Industrial and Construction Projects
Suitable for industrial and construction projects where pneumatic tools and equipment are used for extended periods.
Important Points Before Purchasing
Air Consumption
Determine the required continuous airflow and working pressure before selecting the appropriate tank and configuration.
Tank Capacity
Select a 1,000-liter or 1,250-liter tank for the horizontal model, or a 1,250-liter tank for the skid-mounted configuration.
Installation Space
Check the exact dimensions and ensure sufficient space for installation, maintenance access, and equipment servicing.
Maintenance and Spare Parts
Consider routine maintenance, availability of spare parts, and periodic servicing of the motor and piston assembly.
Noise and Vibration
Evaluate the noise and vibration level at the installation site, especially in work environments where operator comfort is important.
Warranty and After-Sales Service
Mofidi Air Industry provides a
6-month warranty from the date of purchase.
In addition, the company’s piston compressors are supported by
10 years of after-sales service from the date of purchase.
Need More Information?
If you are considering purchasing the
Mofidi 3,000 L/min Piston Air Compressor,
contact our sales team through the phone numbers listed on the website
for technical consultation and purchasing assistance.
Mofidi 3,000 L/min Piston Air Compressor
3,000 Liters – 25 HP

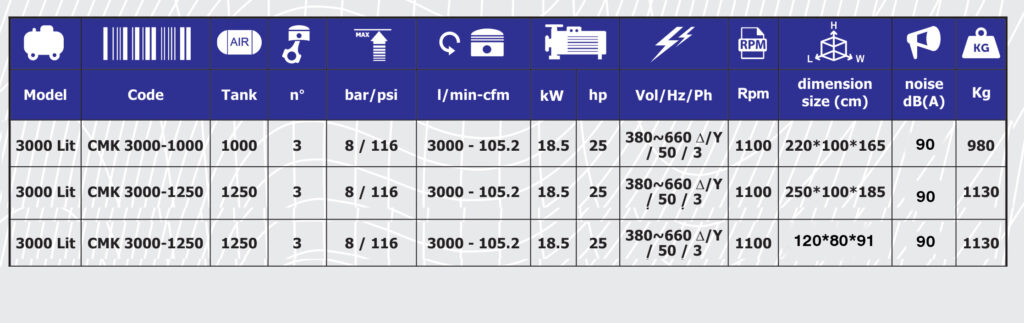

Mofidi 3,000 L/min Piston Air Compressor – Technical Specifications
| Specification | Value |
|---|---|
| Model | 3000 CMI |
| Compressor type | Piston (reciprocating) |
| Air delivery (intake) | 3,000 L/min (105.2 cfm) |
| Working pressure | 8 bar (116 psi) |
| Motor power | 18.5 kW (25 HP) |
| Piston speed | 1100 RPM |
| Power supply | three-phase 380 V |
| Tank size | 1000 or 1250 liters |
The “3,000 L/min” in the name of this compressor is its air delivery (3,000 liters of air per minute), not the tank size. It is supplied with a 1000 or 1250-liter tank.
What Is the 3,000 L/min piston air compressor Suitable For?
With a 25 HP motor and three-phase 380 V power supply, the Mofidi 3,000 L/min piston air compressor is a good choice for factories and production lines with high air demand and long running hours that have three-phase industrial power. If you need less air, see the 2,000 L/min piston air compressor. For very high air demand, a rotary screw compressor is usually more economical.
Compare Mofidi Piston Air Compressors
| Model | Air delivery | Motor | Pressure | Power supply |
|---|---|---|---|---|
| 100 L/min | 100 L/min | 1 HP | 8 bar | Single-phase |
| 200 L/min | 200 L/min | 1.5 HP | 8 bar | Single-phase |
| 300 L/min | 300 L/min | 2 HP | 8 bar | Single-phase |
| 350 L/min | 350 L/min | 3 HP | 8 bar | Single-phase |
| 450 L/min | 450 L/min | 4 HP | 10 bar | Three-phase |
| 650 L/min | 650 L/min | 5.5 HP | 10 bar | Three-phase |
| 830 L/min | 830 L/min | 7.5 HP | 10 bar | Three-phase |
| 1,000 L/min | 1,000 L/min | 10 HP | 10 bar | Three-phase |
| 1,200 L/min | 1,200 L/min | 10 HP | 10 bar | Three-phase |
| 1,500 L/min | 1,500 L/min | 15 HP | 8 bar | Three-phase |
| 2,000 L/min | 2,000 L/min | 20 HP | 8 bar | Three-phase |
| 3,000 L/min | 3,000 L/min | 25 HP | 8 bar | Three-phase |
For more guidance, read Mofidi Piston Compressor: A Powerful and Cost-Effective Choice and our Guide to Choosing the Right Industrial Compressor.
Mofidi 3,000 L/min Piston Air Compressor – FAQ
What does “3,000 L/min” mean?
It means the compressor takes in 3,000 liters of air per minute (105.2 cfm). The tank size is 1000 or 1250 liters.
What is the working pressure?
8 bar (116 psi).
Does it run on single-phase or three-phase power?
It requires a three-phase 380 V industrial power supply.
What is the motor power?
18.5 kW (25 HP).
Buy the Mofidi 3,000 L/min Piston Air Compressor
Contact Mofidi Air Industry for help choosing the right model and tank size, and for a quote. See all models in Piston Air Compressors.
