The Mofidi 650 L/min Piston Air Compressor is a versatile and efficient solution for a wide range of industrial and workshop applications.
It is available in horizontal, vertical, and skid-mounted configurations, with different tank options to meet various operating requirements.
Mofidi 650 L/min Piston Air Compressor
The horizontal model is available with 350-liter and 500-liter tanks.
The vertical model is equipped with a 500-liter tank, while the
skid-mounted model is also available with a 500-liter tank.
| Configuration | Available Tank Capacity |
|---|---|
| Horizontal | 350 Liters / 500 Liters |
| Vertical | 500 Liters |
| Skid-Mounted | 500 Liters |
This variety of configurations allows users to select the most suitable compressor according to
their application, available space, and expected operating duration while maintaining a stable
supply of compressed air.
Advantages of the Mofidi 650 L/min Piston Compressor
Horizontal Configuration
The horizontal design has a lower overall height, making it easier to install in low-clearance areas
while providing greater stability during operation.

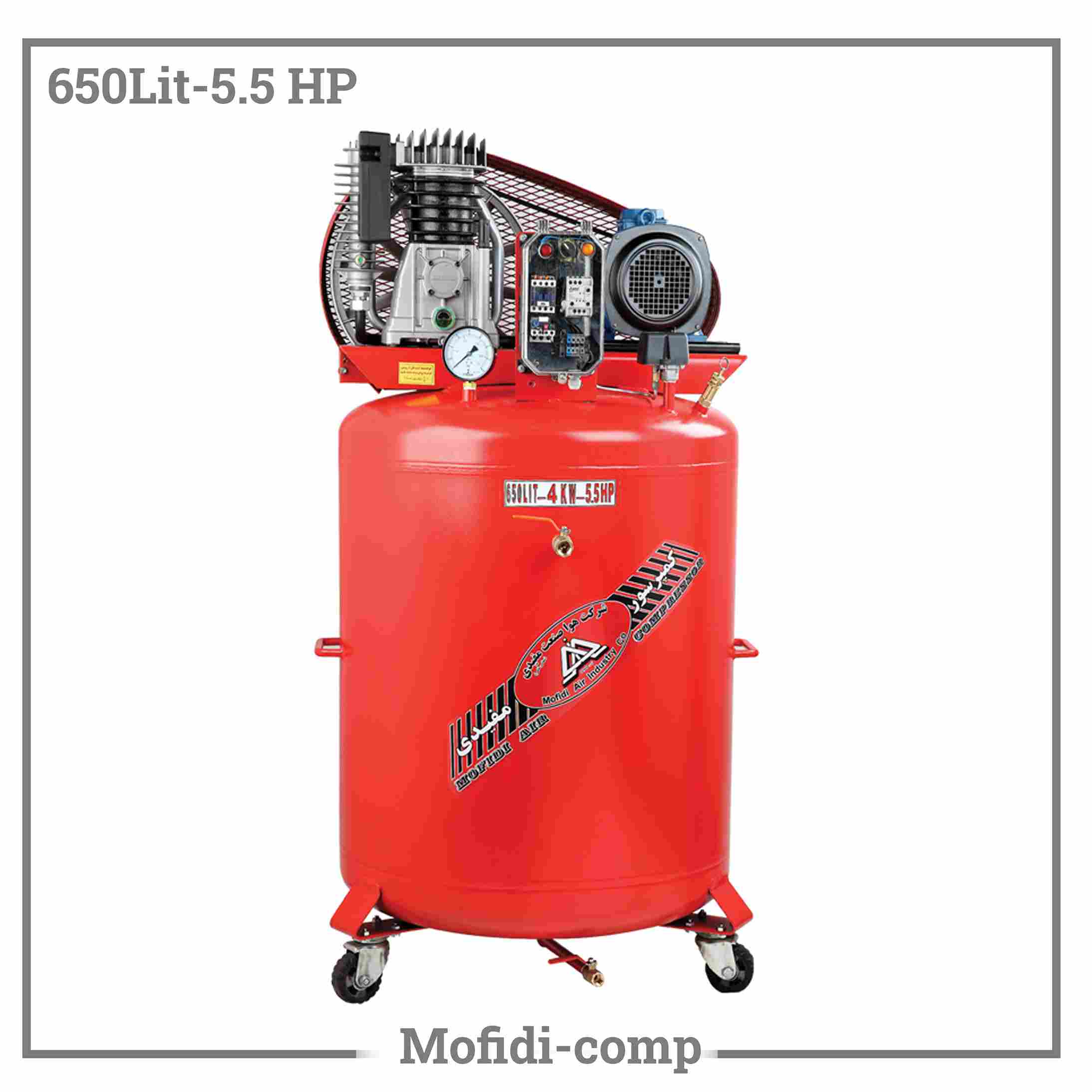

Vertical Configuration
The vertical design uses floor space efficiently and allows easier drainage of accumulated moisture
from the tank through the ball valve. Regular drainage helps reduce the risk of internal corrosion.

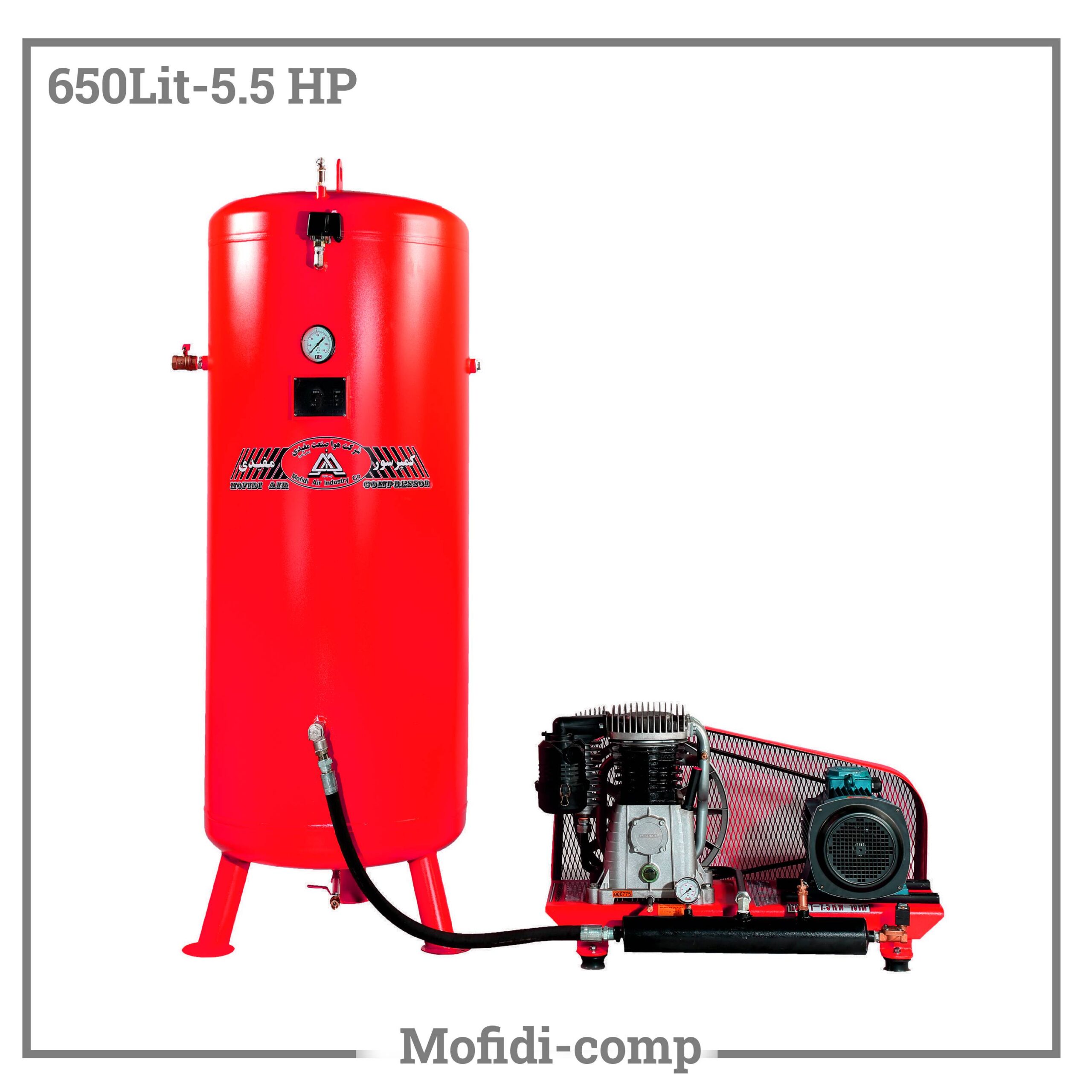

Skid-Mounted Configuration
The skid-mounted design is equipped with effective vibration isolation and is suitable for production lines
requiring reliable compressed-air supply. The tank can also be drained through the ball valve,
helping reduce moisture accumulation and internal corrosion.
Technical Specifications
| Maximum Working Pressure | 10 bar / 145 PSI |
| Air Intake Capacity | 650 L/min / 22.8 CFM |
| Motor Power | 4 kW / 5.5 HP |
| Piston Speed | 1,100 RPM |
| Available Configurations | Horizontal / Vertical / Skid-Mounted |
With a maximum working pressure of 10 bar (145 PSI) and an air intake capacity of
650 L/min (22.8 CFM), this compressor is suitable for demanding workshop and industrial applications.
The 4 kW (5.5 HP) motor operates at a piston speed of 1,100 RPM,
providing a practical balance between operating speed, performance, and component durability.
The combination of air intake capacity, working pressure, and available tank configurations makes
the Mofidi 650 L/min Piston Air Compressor suitable for continuous and demanding applications.
Reliable Choice for Industrial Applications
The Mofidi 650 L/min Piston Air Compressor offers multiple installation configurations
and tank capacities, allowing users to choose a model based on their compressed-air demand,
available workspace, and operating conditions.
Mofidi 650 L/min Piston Compressor
650 Liters – 5.5 HP

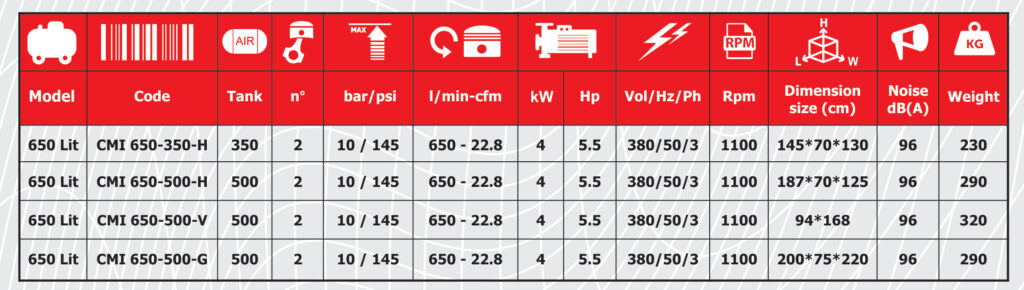

Mofidi 650 L/min Piston Air Compressor – Technical Specifications
| Specification | Value |
|---|---|
| Model | 650 CMI |
| Compressor type | Piston (reciprocating) |
| Air delivery (intake) | 650 L/min (22.8 cfm) |
| Working pressure | 10 bar (145 psi) |
| Motor power | 4 kW (5.5 HP) |
| Piston speed | 1100 RPM |
| Power supply | three-phase 380 V |
| Tank size | 350 or 500 liters |
The “650 L/min” in the name of this compressor is its air delivery (650 liters of air per minute), not the tank size. It is supplied with a 350 or 500-liter tank.
What Is the 650 L/min piston air compressor Suitable For?
With a 5.5 HP motor and three-phase 380 V power supply, the Mofidi 650 L/min piston air compressor is a good choice for medium workshops, woodworking and MDF shops, auto repair centers and light production lines running several air tools at once. If you need less air, see the 450 L/min piston air compressor. For higher demand, see the 830 L/min piston air compressor.
Compare Mofidi Piston Air Compressors
| Model | Air delivery | Motor | Pressure | Power supply |
|---|---|---|---|---|
| 100 L/min | 100 L/min | 1 HP | 8 bar | Single-phase |
| 200 L/min | 200 L/min | 1.5 HP | 8 bar | Single-phase |
| 300 L/min | 300 L/min | 2 HP | 8 bar | Single-phase |
| 350 L/min | 350 L/min | 3 HP | 8 bar | Single-phase |
| 450 L/min | 450 L/min | 4 HP | 10 bar | Three-phase |
| 650 L/min | 650 L/min | 5.5 HP | 10 bar | Three-phase |
| 830 L/min | 830 L/min | 7.5 HP | 10 bar | Three-phase |
| 1,000 L/min | 1,000 L/min | 10 HP | 10 bar | Three-phase |
| 1,200 L/min | 1,200 L/min | 10 HP | 10 bar | Three-phase |
| 1,500 L/min | 1,500 L/min | 15 HP | 8 bar | Three-phase |
| 2,000 L/min | 2,000 L/min | 20 HP | 8 bar | Three-phase |
| 3,000 L/min | 3,000 L/min | 25 HP | 8 bar | Three-phase |
For more guidance, read Mofidi Piston Compressor: A Powerful and Cost-Effective Choice and our Guide to Choosing the Right Industrial Compressor.
Mofidi 650 L/min Piston Air Compressor – FAQ
What does “650 L/min” mean?
It means the compressor takes in 650 liters of air per minute (22.8 cfm). The tank size is 350 or 500 liters.
What is the working pressure?
10 bar (145 psi).
Does it run on single-phase or three-phase power?
It requires a three-phase 380 V industrial power supply.
What is the motor power?
4 kW (5.5 HP).
Buy the Mofidi 650 L/min Piston Air Compressor
Contact Mofidi Air Industry for help choosing the right model and tank size, and for a quote. See all models in Piston Air Compressors.
