The Mofidi 1,500 L/min Piston Air Compressor is one of the practical solutions for large industrial applications.
This compressor is available in horizontal and skid-mounted configurations.
With its high air delivery capacity, it is a suitable option for medium to large factories and industrial facilities.
Mofidi 1,500 L/min Piston Air Compressor
Horizontal Model
The horizontal model is available with
500-liter and 1,000-liter tanks,
allowing users to select the appropriate tank capacity according to their compressed-air requirements.
Skid-Mounted Model
The skid-mounted model is available with a
1,000-liter tank
and is designed for industrial applications requiring high compressed-air capacity.
Flexible Tank Selection
The available tank options allow users to select the most suitable configuration based on
available workshop space, compressed-air demand, and operating requirements.
Technical Specifications
The maximum working pressure of this compressor is
8 bar (116 PSI), making it suitable for a wide range of industrial applications.
The compressor is equipped with an 11 kW (15 HP) motor
and provides an air intake capacity of 1,500 L/min (52.6 CFM).
The piston speed is 900 RPM, providing suitable operating performance
for continuous compressed-air applications.
Performance and Reliability
Durable Mechanical Design
The piston compressor is based on a robust mechanical design suitable for
demanding industrial applications and extended operating periods.
Easy Maintenance
Its practical mechanical structure allows routine maintenance and component
replacement to be carried out conveniently.
High Air Delivery
With an air intake capacity of 1,500 L/min (52.6 CFM),
this compressor can provide compressed air for high-consumption industrial applications.
Advantages of the Skid-Mounted Model
Separate Installation
The skid-mounted configuration allows flexible installation of the compressor unit
and can simplify equipment layout in industrial environments.
Suitable for Industrial Use
The skid-mounted design is suitable for industrial facilities and production environments
where a flexible equipment arrangement is required.
Flexible Tank Capacity
Available tank capacities provide flexibility when selecting the appropriate
compressed-air storage volume for different applications.
Warranty and After-Sales Service
Mofidi Air Industry provides a
6-month warranty from the date of purchase.
In addition, all piston compressors are supported by
10 years of after-sales service from the date of purchase.
Need More Information?
If you are considering purchasing the
Mofidi 1,500 L/min Piston Air Compressor,
contact our sales team through the phone numbers listed on the website
for technical consultation and purchasing assistance.

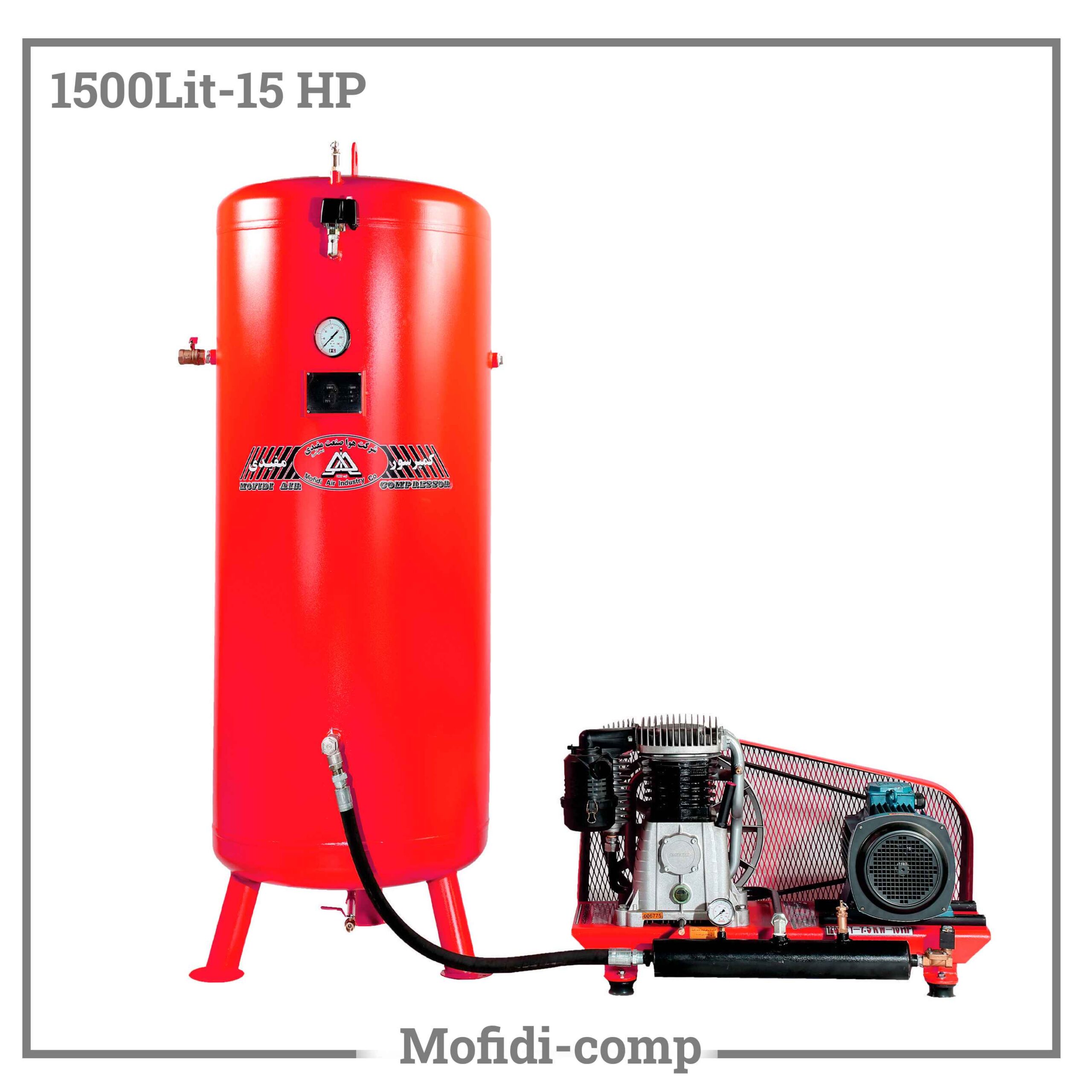

Mofidi 1,500 L/min Piston Air Compressor
1,500 Liters – 15 HP
Mofidi 1,500 L/min Piston Air Compressor – Technical Specifications
| Specification | Value |
|---|---|
| Model | 1500 CMI |
| Compressor type | Piston (reciprocating) |
| Air delivery (intake) | 1,500 L/min (52.6 cfm) |
| Working pressure | 8 bar (116 psi) |
| Motor power | 11 kW (15 HP) |
| Piston speed | 900 RPM |
| Power supply | three-phase 380 V |
| Tank size | 500 or 1000 liters |
The “1,500 L/min” in the name of this compressor is its air delivery (1,500 liters of air per minute), not the tank size. It is supplied with a 500 or 1000-liter tank.
What Is the 1,500 L/min piston air compressor Suitable For?
With a 15 HP motor and three-phase 380 V power supply, the Mofidi 1,500 L/min piston air compressor is a good choice for factories and production lines with high air demand and long running hours that have three-phase industrial power. If you need less air, see the 1,200 L/min piston air compressor. For higher demand, see the 2,000 L/min piston air compressor.
Compare Mofidi Piston Air Compressors
| Model | Air delivery | Motor | Pressure | Power supply |
|---|---|---|---|---|
| 100 L/min | 100 L/min | 1 HP | 8 bar | Single-phase |
| 200 L/min | 200 L/min | 1.5 HP | 8 bar | Single-phase |
| 300 L/min | 300 L/min | 2 HP | 8 bar | Single-phase |
| 350 L/min | 350 L/min | 3 HP | 8 bar | Single-phase |
| 450 L/min | 450 L/min | 4 HP | 10 bar | Three-phase |
| 650 L/min | 650 L/min | 5.5 HP | 10 bar | Three-phase |
| 830 L/min | 830 L/min | 7.5 HP | 10 bar | Three-phase |
| 1,000 L/min | 1,000 L/min | 10 HP | 10 bar | Three-phase |
| 1,200 L/min | 1,200 L/min | 10 HP | 10 bar | Three-phase |
| 1,500 L/min | 1,500 L/min | 15 HP | 8 bar | Three-phase |
| 2,000 L/min | 2,000 L/min | 20 HP | 8 bar | Three-phase |
| 3,000 L/min | 3,000 L/min | 25 HP | 8 bar | Three-phase |
For more guidance, read Mofidi Piston Compressor: A Powerful and Cost-Effective Choice and our Guide to Choosing the Right Industrial Compressor.
Mofidi 1,500 L/min Piston Air Compressor – FAQ
What does “1,500 L/min” mean?
It means the compressor takes in 1,500 liters of air per minute (52.6 cfm). The tank size is 500 or 1000 liters.
What is the working pressure?
8 bar (116 psi).
Does it run on single-phase or three-phase power?
It requires a three-phase 380 V industrial power supply.
What is the motor power?
11 kW (15 HP).
Buy the Mofidi 1,500 L/min Piston Air Compressor
Contact Mofidi Air Industry for help choosing the right model and tank size, and for a quote. See all models in Piston Air Compressors.
