The Mofidi 450 L/min Piston Air Compressor is a reliable solution for workshops and industrial production lines.
It is available in both horizontal and vertical configurations, allowing users to select the most suitable design according to their available space and operational requirements.
Industries such as oil and gas, mining, pharmaceutical and healthcare, food processing, and other industrial sectors rely heavily on compressed air.
To meet different application requirements, Mofidi Air Industry offers piston air compressors in a variety of capacities and configurations.
Mofidi 450 L/min Piston Air Compressor
“`
Horizontal Configuration
Available with 150-liter, 250-liter, and 350-liter tanks.
Vertical Configuration
Available with a 350-liter tank.
“`
Technical Specifications
| Specification | Details |
|---|---|
| Air Intake | 450 L/min / 15.7 CFM |
| Motor Power | 3 kW / 4 HP |
| Maximum Working Pressure | 10 bar / 145 PSI |
| Piston Speed | 1,100 RPM |
| Power Supply | 380 V / 50 Hz / Three-Phase |
With an air intake capacity of 450 L/min (15.7 CFM), this compressor can provide a stable supply of compressed air for a wide range of medium-duty industrial and workshop applications.
The 3 kW (4 HP) motor operates at a piston speed of 1,100 RPM, providing a practical balance between operating speed, performance, and component service life.
With a maximum working pressure of 10 bar (145 PSI), the compressor is suitable for applications requiring higher compressed-air pressure.
The unit operates on a 380-volt, 50 Hz, three-phase power supply and is therefore designed for workshops and industrial facilities equipped with three-phase electrical power.
Choosing the Right Configuration
“`
The availability of both horizontal and vertical configurations gives users greater flexibility when selecting the compressor.
The appropriate tank size and design should be chosen according to compressed-air demand, available installation space, and expected operating duration.
The Mofidi 450 L/min Piston Air Compressor is a suitable choice for medium to large workshops and industrial applications requiring reliable compressed-air performance.
For additional information and purchasing assistance, contact the Mofidi sales team.
“`
Mofidi 450 L/min Piston Compressor
450 Liters – 4 HP

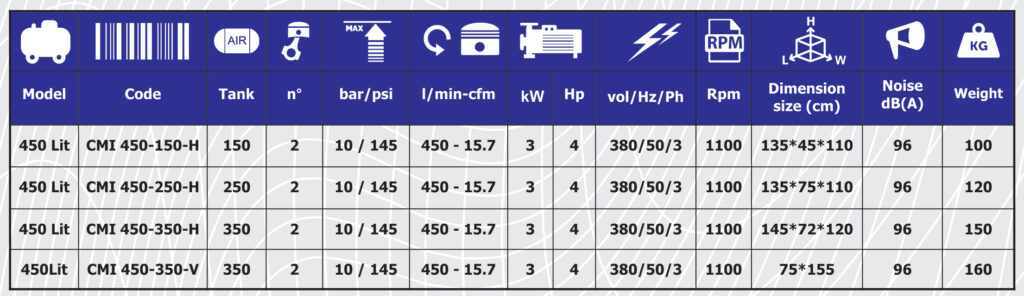

Mofidi 450 L/min Piston Air Compressor – Technical Specifications
| Specification | Value |
|---|---|
| Model | 450 CMI |
| Compressor type | Piston (reciprocating) |
| Air delivery (intake) | 450 L/min (15.7 cfm) |
| Working pressure | 10 bar (145 psi) |
| Motor power | 3 kW (4 HP) |
| Piston speed | 1100 RPM |
| Power supply | three-phase 380 V |
| Tank size | 150, 250 or 350 liters |
The “450 L/min” in the name of this compressor is its air delivery (450 liters of air per minute), not the tank size. It is supplied with a 150, 250 or 350-liter tank.
What Is the 450 L/min piston air compressor Suitable For?
With a 4 HP motor and three-phase 380 V power supply, the Mofidi 450 L/min piston air compressor is a good choice for medium workshops, woodworking and MDF shops, auto repair centers and light production lines running several air tools at once. If you need less air, see the 350 L/min piston air compressor. For higher demand, see the 650 L/min piston air compressor.
Compare Mofidi Piston Air Compressors
| Model | Air delivery | Motor | Pressure | Power supply |
|---|---|---|---|---|
| 100 L/min | 100 L/min | 1 HP | 8 bar | Single-phase |
| 200 L/min | 200 L/min | 1.5 HP | 8 bar | Single-phase |
| 300 L/min | 300 L/min | 2 HP | 8 bar | Single-phase |
| 350 L/min | 350 L/min | 3 HP | 8 bar | Single-phase |
| 450 L/min | 450 L/min | 4 HP | 10 bar | Three-phase |
| 650 L/min | 650 L/min | 5.5 HP | 10 bar | Three-phase |
| 830 L/min | 830 L/min | 7.5 HP | 10 bar | Three-phase |
| 1,000 L/min | 1,000 L/min | 10 HP | 10 bar | Three-phase |
| 1,200 L/min | 1,200 L/min | 10 HP | 10 bar | Three-phase |
| 1,500 L/min | 1,500 L/min | 15 HP | 8 bar | Three-phase |
| 2,000 L/min | 2,000 L/min | 20 HP | 8 bar | Three-phase |
| 3,000 L/min | 3,000 L/min | 25 HP | 8 bar | Three-phase |
For more guidance, read Mofidi Piston Compressor: A Powerful and Cost-Effective Choice and our Guide to Choosing the Right Industrial Compressor.
Mofidi 450 L/min Piston Air Compressor – FAQ
What does “450 L/min” mean?
It means the compressor takes in 450 liters of air per minute (15.7 cfm). The tank size is 150, 250 or 350 liters.
What is the working pressure?
10 bar (145 psi).
Does it run on single-phase or three-phase power?
It requires a three-phase 380 V industrial power supply.
What is the motor power?
3 kW (4 HP).
Buy the Mofidi 450 L/min Piston Air Compressor
Contact Mofidi Air Industry for help choosing the right model and tank size, and for a quote. See all models in Piston Air Compressors.
