One of the essential consumable components used in compressors is the Mofidi Microfilter Element Kit. To purchase this product, you can contact the sales experts at Mofidi Air Industry.
In today’s industrial world, compressed air is considered one of the most important sources of energy. However, did you know that the air discharged from a compressor can contain contaminants such as oil, moisture, dust particles, and water vapor? This is where the Microfilter Element Kit plays a vital role as a key component of the compressed air filtration system.

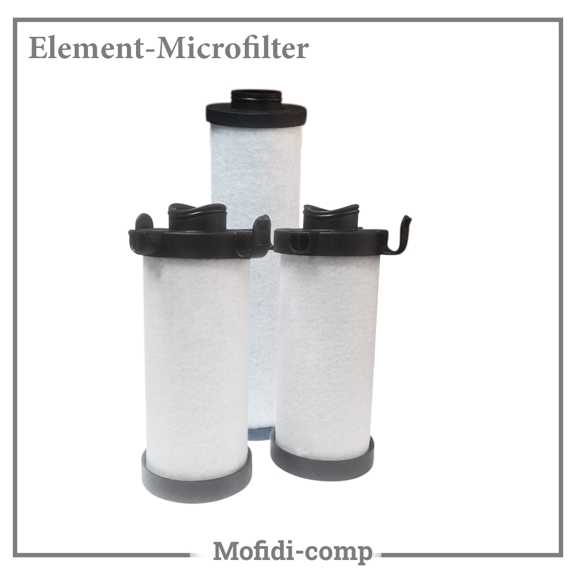

What Is a Microfilter Element Kit?
A microfilter element kit consists of filtration components installed inside a microfilter housing. Its main function is to remove suspended particles, oil droplets, moisture, and microscopic contaminants from the compressed air stream.
These filter elements are typically made from long cellulose fibers, polypropylene, or polyester and operate through a depth-filtration mechanism. The higher the quality of the materials used in the filter element, the higher the filtration efficiency and the lower the pressure drop imposed on the system.
Benefits of Using a Microfilter Element Kit
- Extending equipment lifespan: It helps protect equipment such as adsorption dryers, pneumatic valves, cylinders, and pneumatic tools. Contaminated air can increase valve leakage and significantly reduce equipment service life.
- Reducing maintenance and repair costs: By removing abrasive particles and moisture from the compressed air line, the risk of failure in moving components is minimized.
- Improving final product quality: This is particularly important in sensitive industries such as automotive painting, chemical manufacturing, and food packaging.
When Should the Microfilter Element Be Replaced?
The replacement interval of a microfilter element depends on several factors. However, as a general guideline, the filter element should be replaced every 6 to 12 months, or whenever the pressure drop exceeds 0.5 bar.
If the red zone appears on the Differential Pressure Indicator, the filter element should also be replaced immediately.
Operating with a contaminated or clogged filter element can increase the compressor’s energy consumption and reduce the overall efficiency of the compressed air system.
Key Points When Buying a Microfilter Element Kit
When purchasing a suitable microfilter element kit, several important factors should be considered:
- Brand compatibility: Choose an element that matches the dimensions, connections, and thread specifications of your filter housing.
- Filtration grade: Select the appropriate filtration grade, such as AO, AA, or ACS, according to your application requirements.
- Airflow capacity: Make sure the selected filter element can handle the required compressed air flow rate.
- Brand quality: Choose genuine products from reputable brands to ensure reliable filtration performance and long service life.
For more information or to purchase this product, please contact the sales experts at Mofidi Air Industry.
The Role of the Compressor microfilter element in a Compressed Air System
The Mofidi compressor microfilter element removes very fine particles, oil aerosols and remaining contaminants from compressed air so clean air reaches sensitive equipment.
When Should You Replace the Compressor microfilter element?
- Higher pressure drop across the filter
- Lower outlet air quality
- Visibly contaminated element
- Reaching the recommended replacement interval
Install the microfilter after the air receiver and dryer.
Why Quality Matters
Low-quality consumables may cost less up front, but they reduce efficiency, raise energy use and damage main components, costing more in the end. Using the right compressor microfilter element for your compressor model extends equipment life and reduces unplanned downtime.
Other Compressor Consumables
For a complete service, also see: compressor air filter, compressor oil filter, air/oil separator filter, activated alumina. All items are in Compressor Parts & Consumables. Further reading: Compressor Consumables: Ensuring Stable Performance and Long Equipment Life.
Compressor microfilter element – FAQ
Which compressors is it suitable for?
The right model and size depend on your compressor type and model. Tell our team your compressor model and we will recommend the exact part.
How often should it be replaced?
According to the compressor manufacturer’s schedule and operating conditions; inspect more often in harsh environments.
How can I order it?
Contact the Mofidi Air Industry sales team for pricing and availability.
