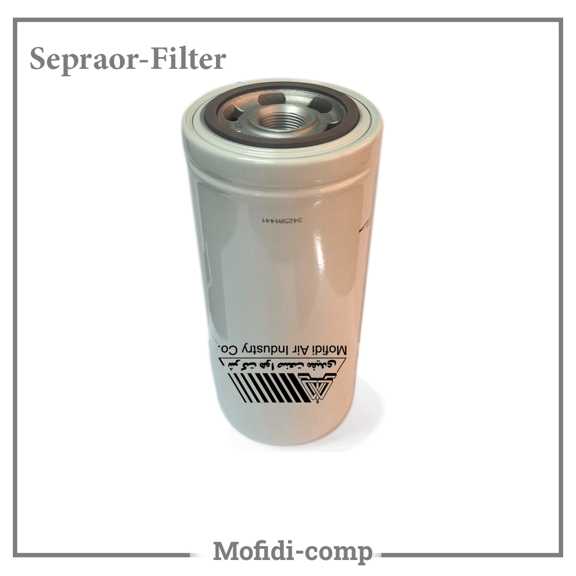

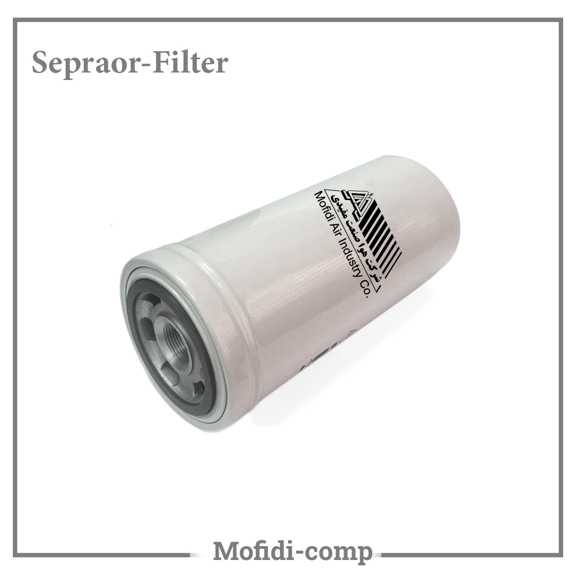

Mofidi Separator Filter is one of the essential consumable components used in compressors.
Therefore, you can purchase this product for your Mofidi Compressor.
What Is a Separator Filter?
A Separator Filter, also known as an air-oil separator, is one of the most critical components in oil-injected screw compressors. Its primary function is to separate fine oil droplets from the compressed air stream before the air is delivered for use.
Importance and Role in the System
The separator filter performs several critical functions:
- Protecting the quality of compressed air: Oil-free compressed air is essential for many industries, including pharmaceutical, food processing, and electronics.
- Reducing oil consumption: Separated oil is returned to the compressor’s oil circuit, minimizing oil consumption.
- Protecting downstream equipment: Pneumatic tools, valves, and cylinders can malfunction or become damaged if excessive amounts of oil enter the system.
- Reducing environmental pollution: The separator helps prevent oil from being released into the environment.
Replacement Interval and Procedure
The service life of a separator filter typically ranges from 2,000 to 6,000 operating hours, depending on several factors, including:
- Quality of the compressor oil
- Compressor operating temperature
- Amount of dust in the operating environment
- Quality of the separator filter itself
Signs that the separator filter needs to be replaced include:
- Increased pressure drop across the filter
- Increased oil consumption
- Reduced compressed air flow rate
- Compressor warning light or alarm activation
- Oil discharge from the condensate drain valve
Important Technical Considerations
1. Selecting the correct filter: The separator filter must be selected precisely according to the compressor model and power rating. Using a non-standard or incompatible filter can damage the compressor.
2. Build quality: It is recommended to use high-quality products from reputable manufacturers, as they meet defined standards for separation efficiency and pressure drop.
3. Proper installation: The installation direction and sealing O-rings must be correctly positioned. Even a small leak can reduce separation efficiency.
4. Replacement with oil service: It is generally recommended to replace the separator filter at the same time as the compressor oil and oil filter.
Conclusion
Although the separator filter may appear to be a small and simple component, it plays a crucial role in the efficiency, compressed air quality, and service life of screw compressors.
By effectively separating oil from compressed air, it not only prevents oil loss but also ensures the supply of clean, high-quality compressed air for industrial applications.
The Role of the Air/oil separator filter in a Compressed Air System
The Mofidi air/oil separator filter separates oil from the compressed air in oil-injected screw compressors, keeping oil carry-over to a minimum and returning the oil to the circuit.
When Should You Replace the Air/oil separator filter?
- Increased oil consumption
- Oil visible in the outlet air or pipework
- Higher pressure difference across the separator
- Reaching the replacement interval in the manual
A worn separator increases oil consumption, pressure drop and energy use.
Why Quality Matters
Low-quality consumables may cost less up front, but they reduce efficiency, raise energy use and damage main components, costing more in the end. Using the right air/oil separator filter for your compressor model extends equipment life and reduces unplanned downtime.
Other Compressor Consumables
For a complete service, also see: compressor air filter, compressor oil filter, compressor microfilter element, activated alumina. All items are in Compressor Parts & Consumables. Further reading: Compressor Consumables: Ensuring Stable Performance and Long Equipment Life.
Air/oil separator filter – FAQ
Which compressors is it suitable for?
The right model and size depend on your compressor type and model. Tell our team your compressor model and we will recommend the exact part.
How often should it be replaced?
According to the compressor manufacturer’s schedule and operating conditions; inspect more often in harsh environments.
How can I order it?
Contact the Mofidi Air Industry sales team for pricing and availability.
