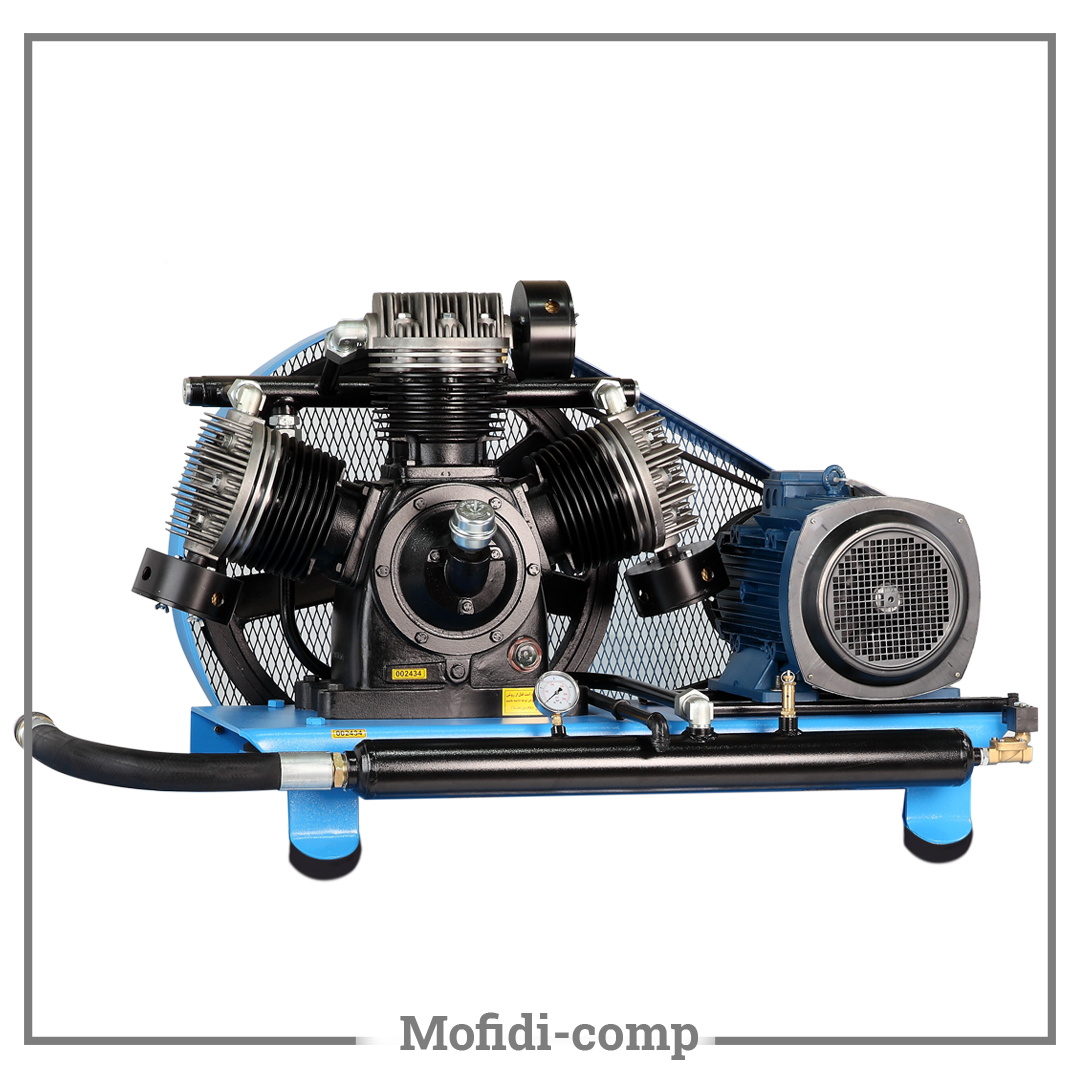

The Mofidi CGK30 booster compressor sits between the CGK25 and CGK40 in the Mofidi booster range and offers a good balance of capacity, energy use and purchase cost for medium-sized plants. It takes compressed air from your main compressor at 7–13 bar and raises it to as much as 40 bar (580 psi), driven by a 22 kW (30 HP) motor.
CGK30 Booster Compressor Technical Specifications
| Specification | Value |
|---|---|
| Model | CGK30 |
| Inlet (suction) pressure | 7–13 bar |
| Minimum working pressure (outlet) | 15 bar (280 psi) |
| Maximum working pressure (outlet) | 40 bar (580 psi) |
| Capacity at 7 bar inlet | 4.72 m³/min (134.5 cfm) |
| Capacity at 10 bar inlet | 6.50 m³/min (185 cfm) |
| Capacity at 13 bar inlet | 8.27 m³/min (235 cfm) |
| Motor power | 22 kW (30 HP) |
Full specifications of the Mofidi booster series:
What Is an Air Booster and How Does the CGK30 Work?
A booster (pressure amplifier) does not draw air from the atmosphere. Instead, it re-compresses air that has already been compressed by a rotary screw or piston compressor. Installed next to your existing compressed air system, the CGK30 takes air at 7–13 bar and delivers 15–40 bar, so part of your production line can be fed with high-pressure air without replacing the whole system. The higher the inlet pressure, the higher the output capacity: from 4.72 m³/min at 7 bar inlet to 8.27 m³/min at 13 bar inlet. Read more in High-Pressure vs. Medium-Pressure Compressors.
Applications of the CGK30 Booster Compressor
- PET bottle and container blow molding
- Pressure and leak testing of pipes, valves, fittings and vessels
- Petrochemical plants, refineries and gas pipeline work
- Industrial laboratories and high-pressure pneumatic equipment
Compare Mofidi Booster Models
Besides the CGK30, the range includes CGK20, CGK25, CGK40. The table below compares the four models:
| Model | Motor | Capacity at 7 bar inlet | Capacity at 13 bar inlet |
|---|---|---|---|
| CGK20 | 15 kW / 20 HP | 3.15 m³/min | 5.51 m³/min |
| CGK25 | 18.5 kW / 25 HP | 4.16 m³/min | 7.28 m³/min |
| CGK30 | 22 kW / 30 HP | 4.72 m³/min | 8.27 m³/min |
| CGK40 | 30 kW / 40 HP | 5.67 m³/min | 9.92 m³/min |
Installation and Operation Tips
- Size the main compressor so its pressure and flow match the booster inlet requirements.
- Keep inlet air dry and clean with a suitable air dryer and filters.
- Store the outlet air in a 30–40 bar high-pressure air receiver.
- Replace compressor consumables on schedule to extend service life.
CGK30 Booster Compressor FAQ
What is the maximum outlet pressure of the CGK30?
40 bar (580 psi); the minimum working pressure is 15 bar (280 psi).
What inlet pressure does the CGK30 need?
7–13 bar, usually supplied by a rotary screw or piston compressor.
What is the capacity of the CGK30?
4.72 to 8.27 m³/min (134.5 to 235 cfm), depending on inlet pressure.
What is the motor power of the CGK30?
22 kW (30 HP).
Buy the CGK30 Booster Compressor
Contact Mofidi Air Industry for technical advice and a quote for the CGK30 booster compressor. See all models in High-Pressure & Booster Compressors.
