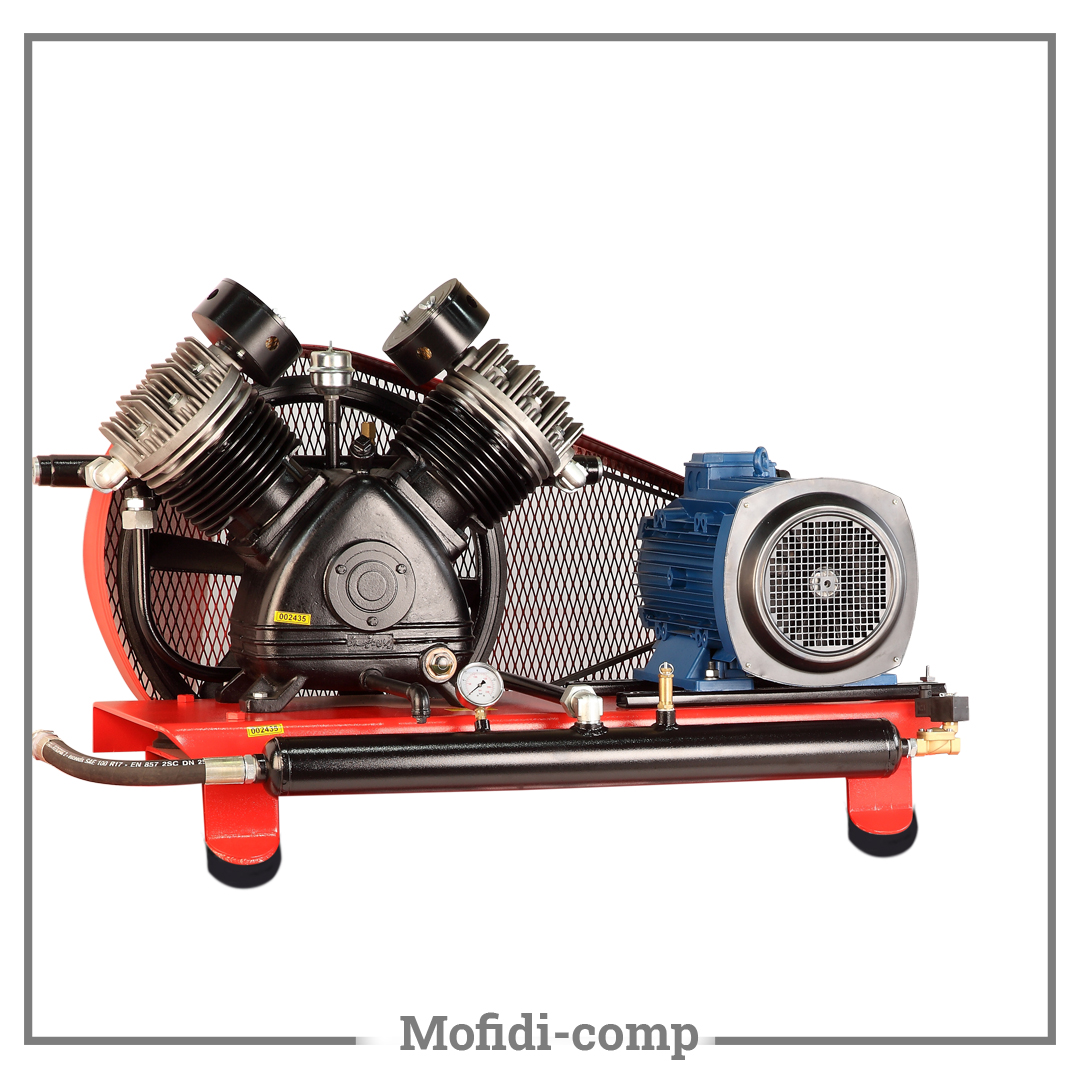

The Mofidi CGK25 booster compressor is a mid-range model in the Mofidi booster series, designed for heavy-duty industrial applications that need a reliable supply of high-pressure air in continuous operation. It takes compressed air from your main compressor at 7–13 bar and raises it to as much as 40 bar (580 psi), driven by a 18.5 kW (25 HP) motor.
CGK25 Booster Compressor Technical Specifications
| Specification | Value |
|---|---|
| Model | CGK25 |
| Inlet (suction) pressure | 7–13 bar |
| Minimum working pressure (outlet) | 15 bar (280 psi) |
| Maximum working pressure (outlet) | 40 bar (580 psi) |
| Capacity at 7 bar inlet | 4.16 m³/min (118.5 cfm) |
| Capacity at 10 bar inlet | 5.72 m³/min (163 cfm) |
| Capacity at 13 bar inlet | 7.28 m³/min (207 cfm) |
| Motor power | 18.5 kW (25 HP) |

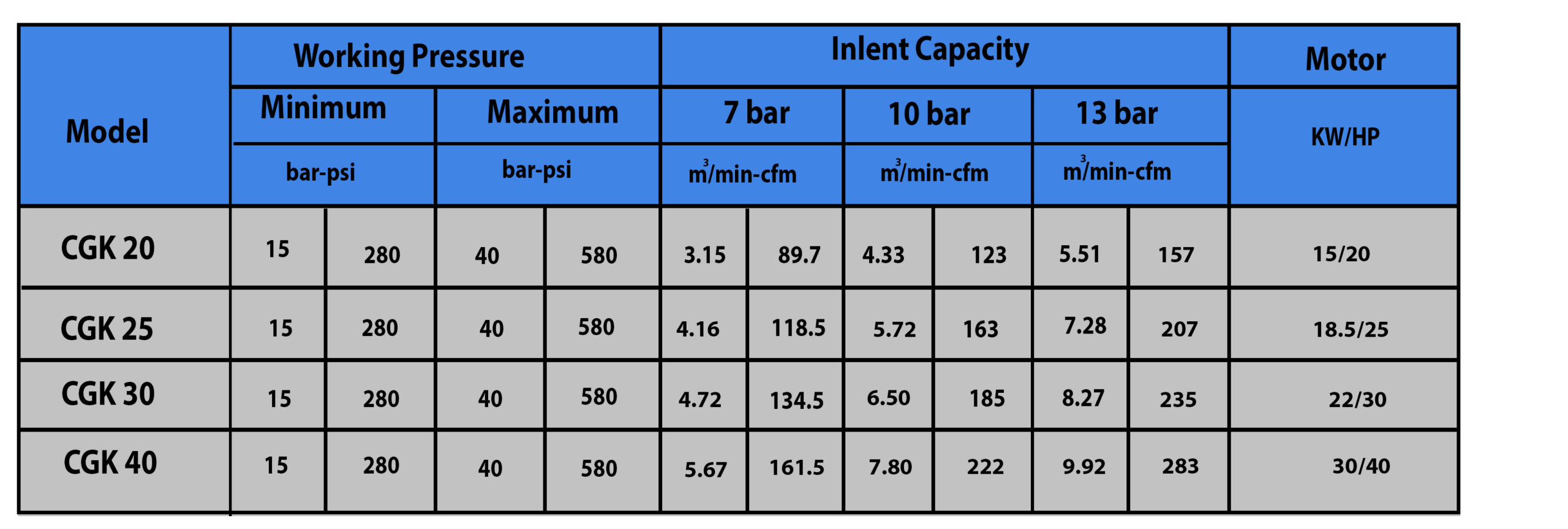

Full specifications of the Mofidi booster series:
What Is an Air Booster and How Does the CGK25 Work?
A booster (pressure amplifier) does not draw air from the atmosphere. Instead, it re-compresses air that has already been compressed by a rotary screw or piston compressor. Installed next to your existing compressed air system, the CGK25 takes air at 7–13 bar and delivers 15–40 bar, so part of your production line can be fed with high-pressure air without replacing the whole system. The higher the inlet pressure, the higher the output capacity: from 4.16 m³/min at 7 bar inlet to 7.28 m³/min at 13 bar inlet. Read more in High-Pressure vs. Medium-Pressure Compressors.
Applications of the CGK25 Booster Compressor
- PET bottle and container blow molding
- Pressure and leak testing of pipes, valves, fittings and vessels
- Petrochemical plants, refineries and gas pipeline work
- Industrial laboratories and high-pressure pneumatic equipment
Compare Mofidi Booster Models
Besides the CGK25, the range includes CGK20, CGK30, CGK40. The table below compares the four models:
| Model | Motor | Capacity at 7 bar inlet | Capacity at 13 bar inlet |
|---|---|---|---|
| CGK20 | 15 kW / 20 HP | 3.15 m³/min | 5.51 m³/min |
| CGK25 | 18.5 kW / 25 HP | 4.16 m³/min | 7.28 m³/min |
| CGK30 | 22 kW / 30 HP | 4.72 m³/min | 8.27 m³/min |
| CGK40 | 30 kW / 40 HP | 5.67 m³/min | 9.92 m³/min |
Installation and Operation Tips
- Size the main compressor so its pressure and flow match the booster inlet requirements.
- Keep inlet air dry and clean with a suitable air dryer and filters.
- Store the outlet air in a 30–40 bar high-pressure air receiver.
- Replace compressor consumables on schedule to extend service life.
CGK25 Booster Compressor FAQ
What is the maximum outlet pressure of the CGK25?
40 bar (580 psi); the minimum working pressure is 15 bar (280 psi).
What inlet pressure does the CGK25 need?
7–13 bar, usually supplied by a rotary screw or piston compressor.
What is the capacity of the CGK25?
4.16 to 7.28 m³/min (118.5 to 207 cfm), depending on inlet pressure.
What is the motor power of the CGK25?
18.5 kW (25 HP).
Buy the CGK25 Booster Compressor
Contact Mofidi Air Industry for technical advice and a quote for the CGK25 booster compressor. See all models in High-Pressure & Booster Compressors.
